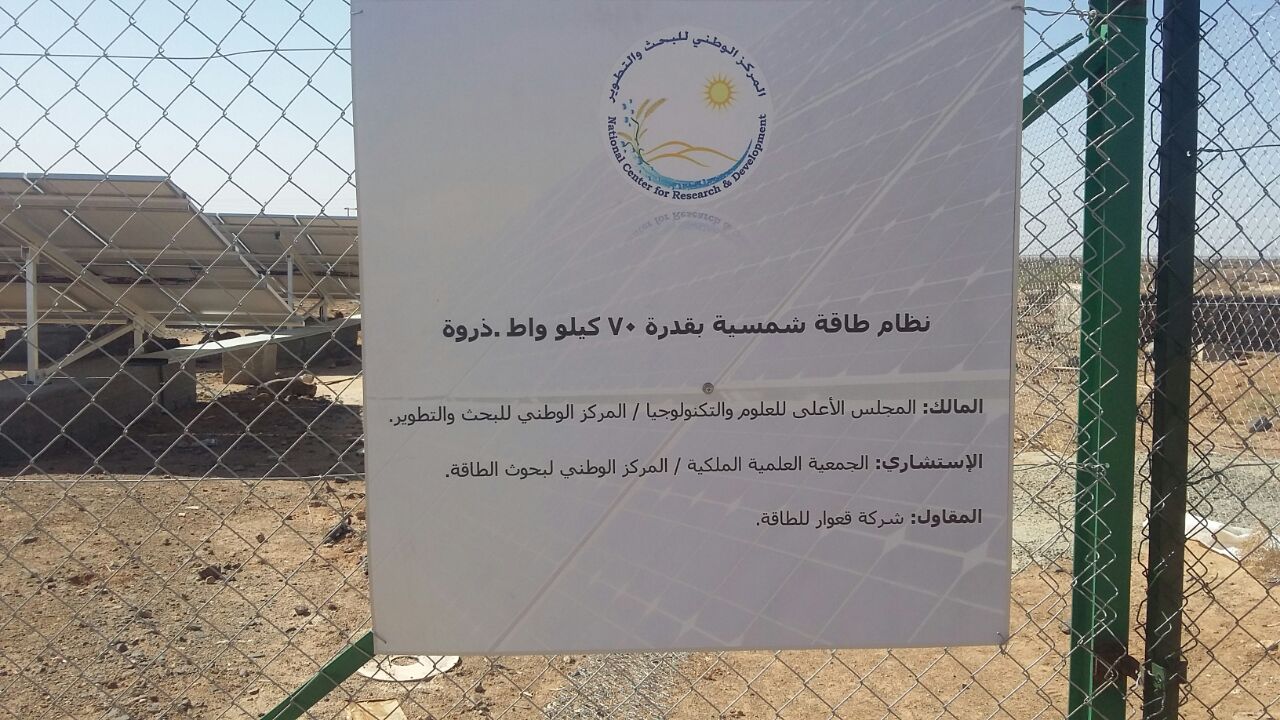

Safawi PV Project

1- System Power is 70 kW.
2- Annual Energy Production is 134.20 MWh.
3- Number Of installed Equipment:

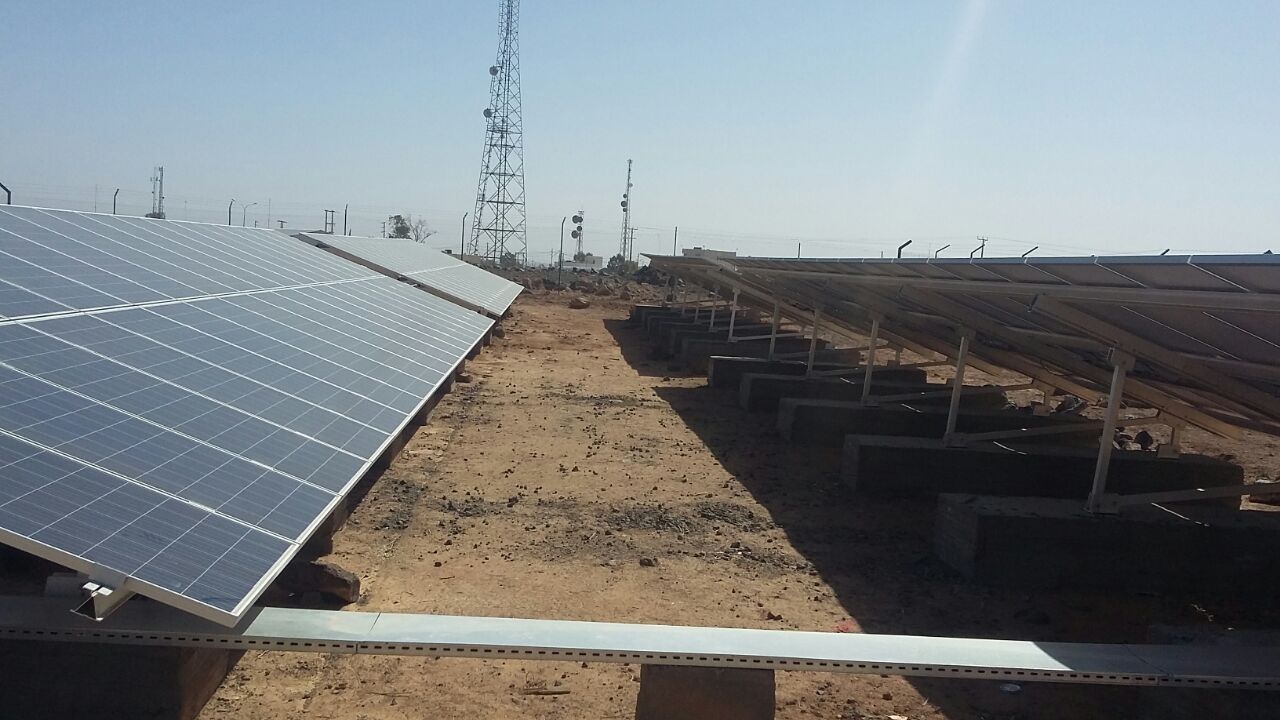

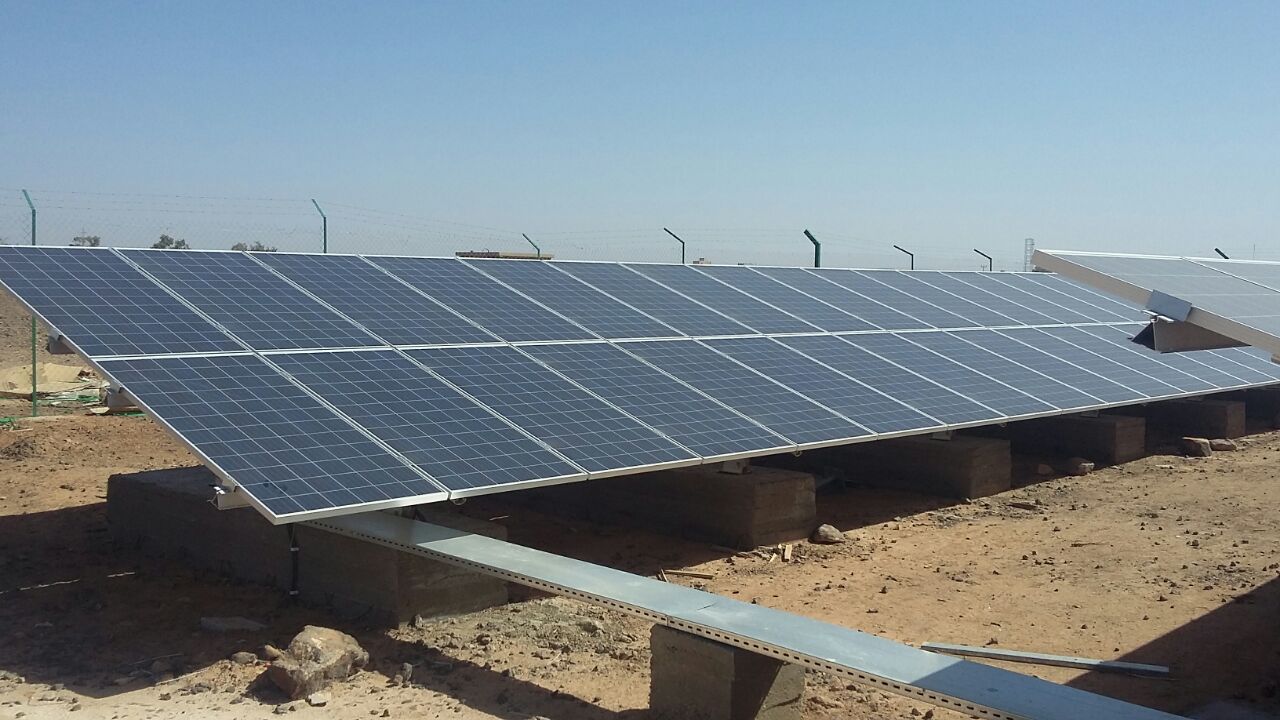

• JINKO 320p -72 PV Modules : 216 Modules

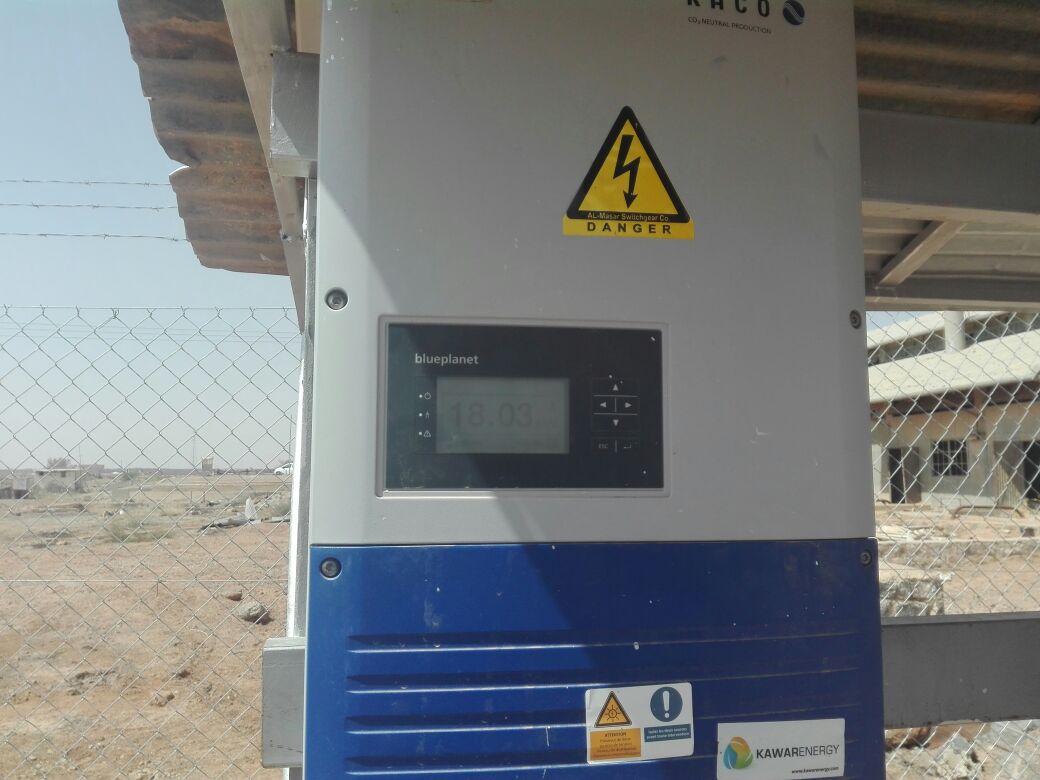

• KAKO Blueplanet 50 TL3 Inverter : 1 Inverter
• KAKO Blueplanet 20 TL3 Inverter : 1 Inverter
4- The PV modules are distributed on 2 groups one for each Inverter as the following: • 64 PV modules are connected to the KAKO Blueplanet 20 TL3 Inverter are distributed in 4 Strings with 34 Amp • 152 PV modules are connected to the KAKO Blueplanet 50 TL3 Inverter are distributed in 8 Strings with 68 Amp
5- The system has an online monitoring system
